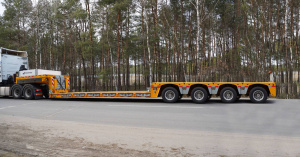

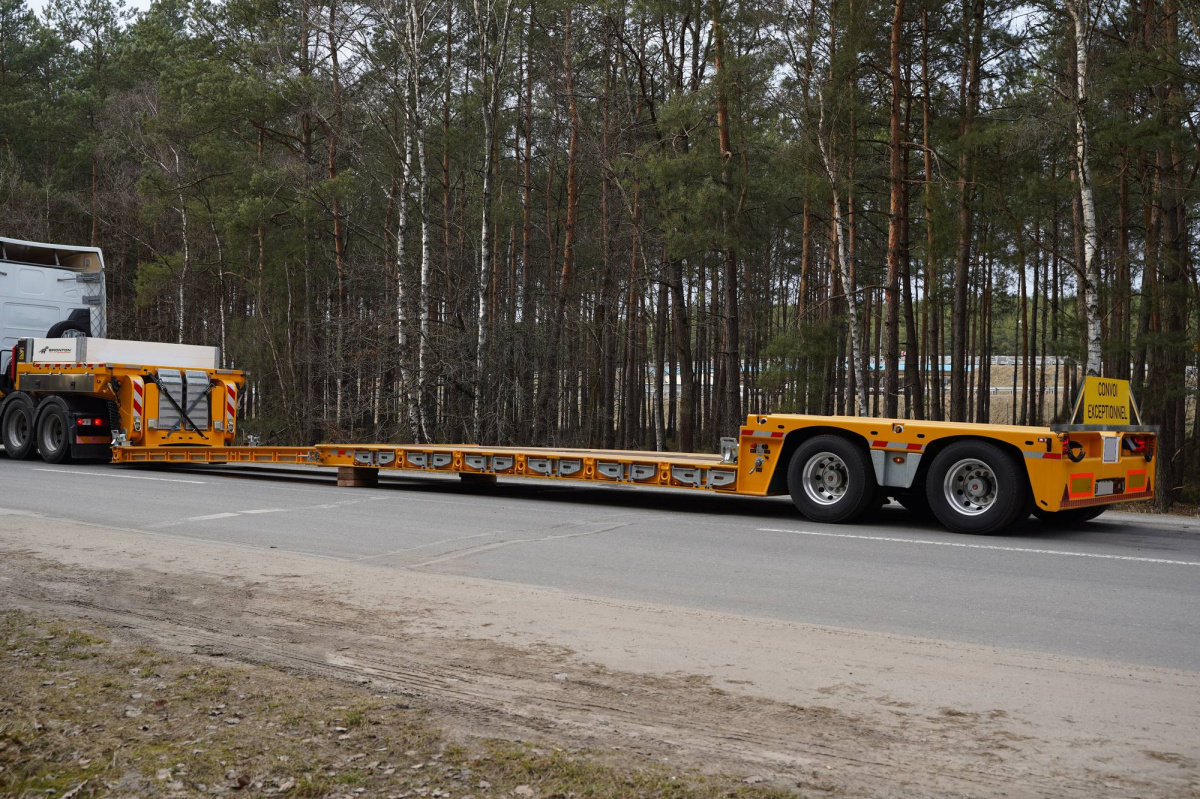

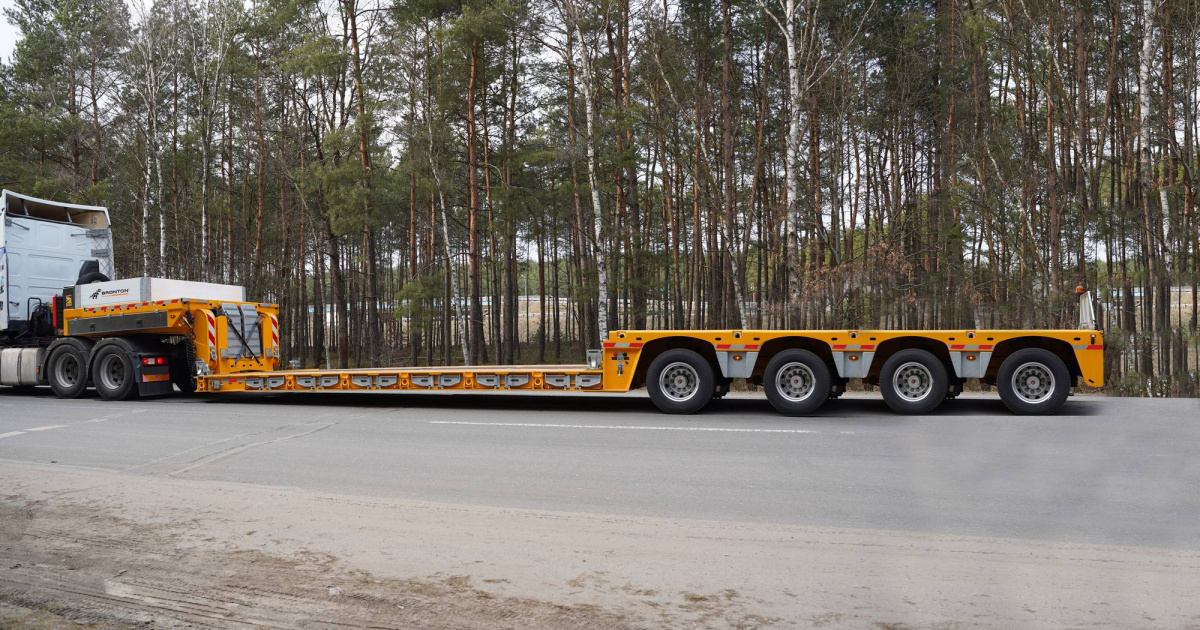

Lowboy

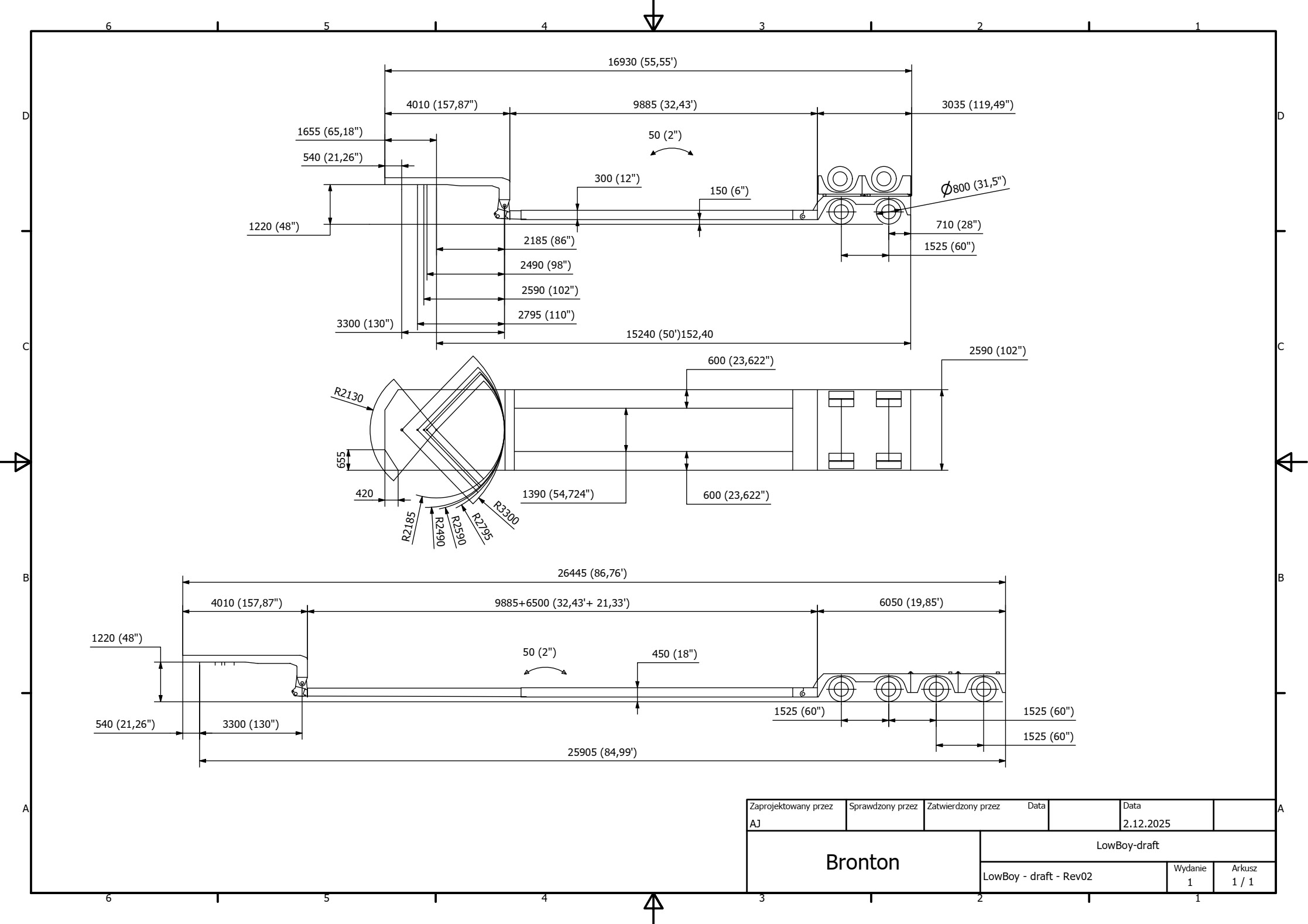

General Dimensions
- Overall length: approx. 26,445 mm (86.76 ft)

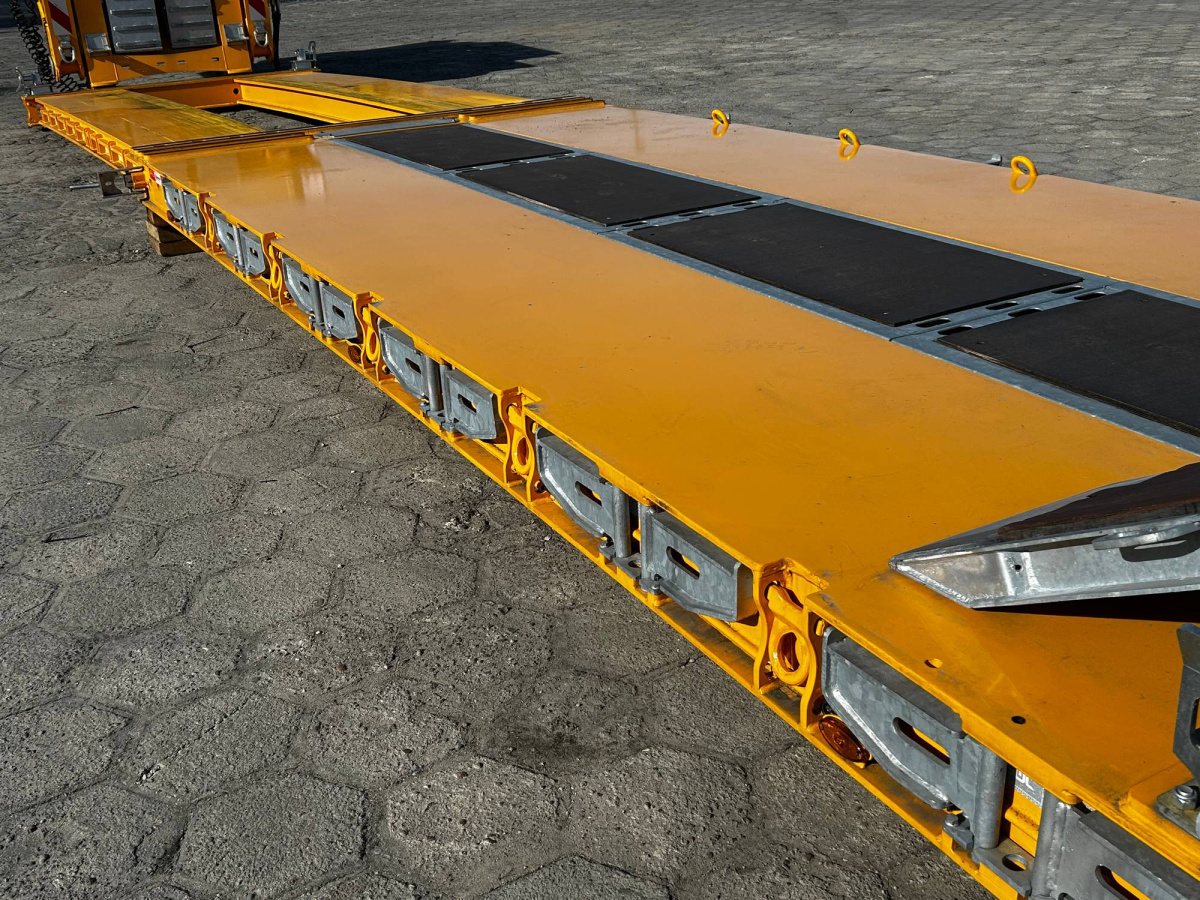

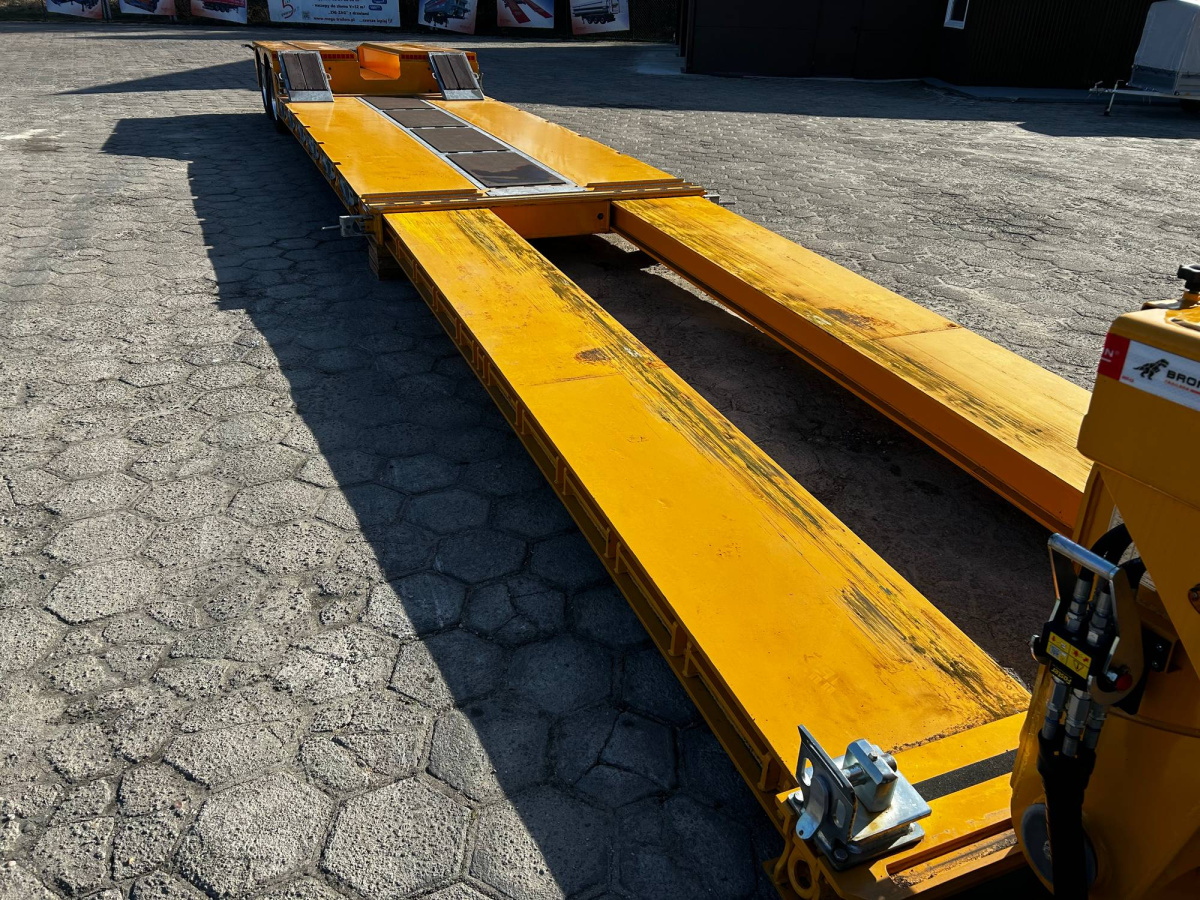

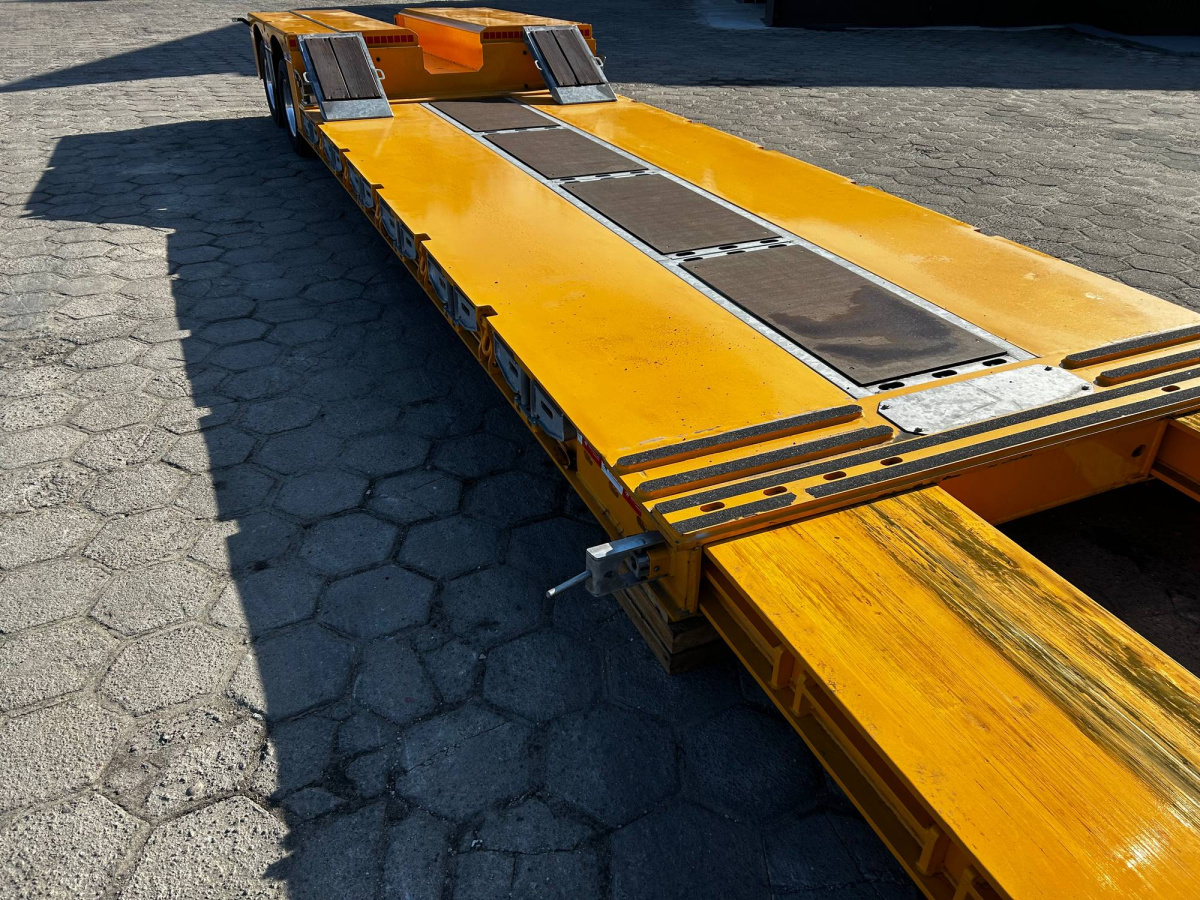

- Main deck length: approx. 9,885 mm (32.43 ft)
- Rear extension (gooseneck + extension): 6,500 mm (21.33 ft)

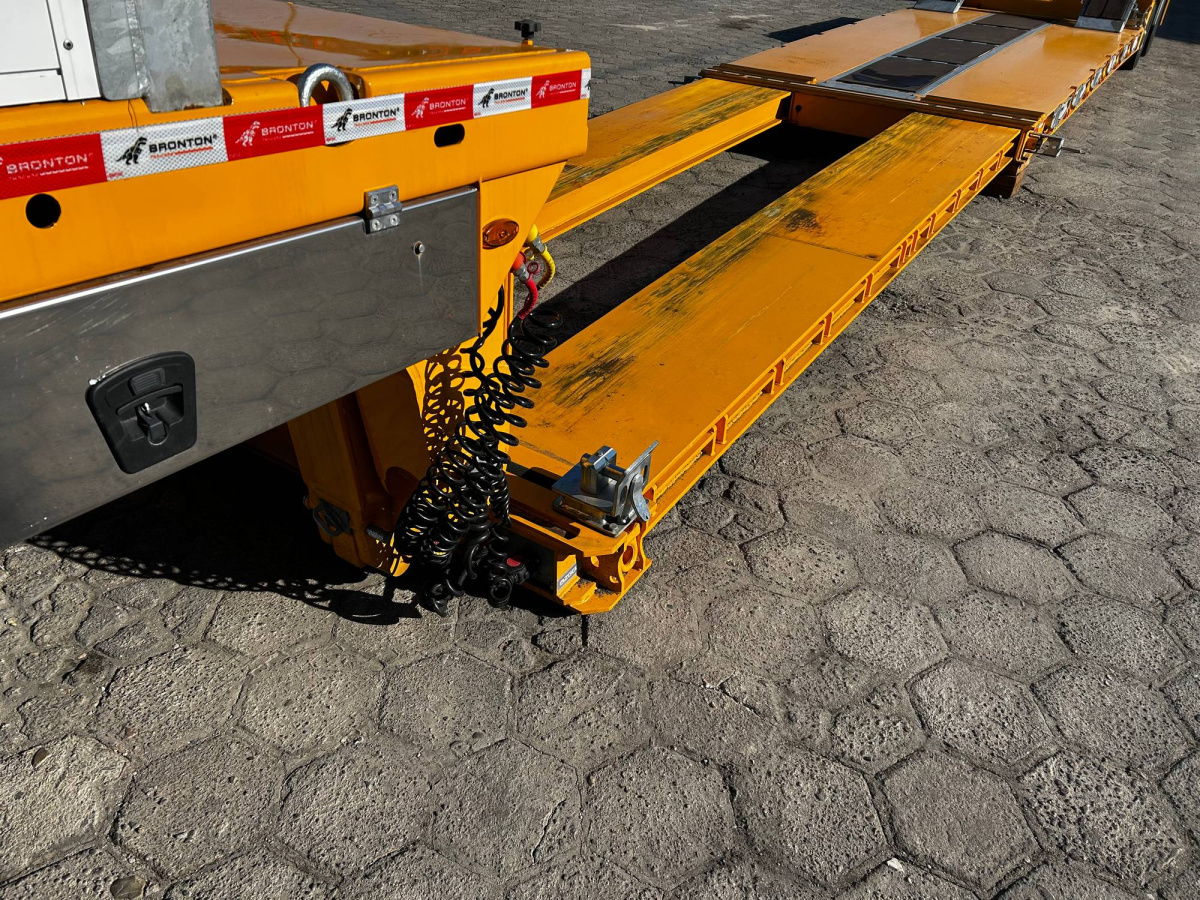

- Front gooseneck length: approx. 4,010 mm (157.87 in)
- Total transport length (variant): up to 25,905 mm (84.99 ft)
Width and Height
- Standard width: 2,590 mm (102 in)
- Narrow sections / inner deck: 600 mm (23.62 in)
- Deck height (low section): approx. 540 mm (21.26 in)
- Gooseneck height: approx. 1,220 mm (48 in)

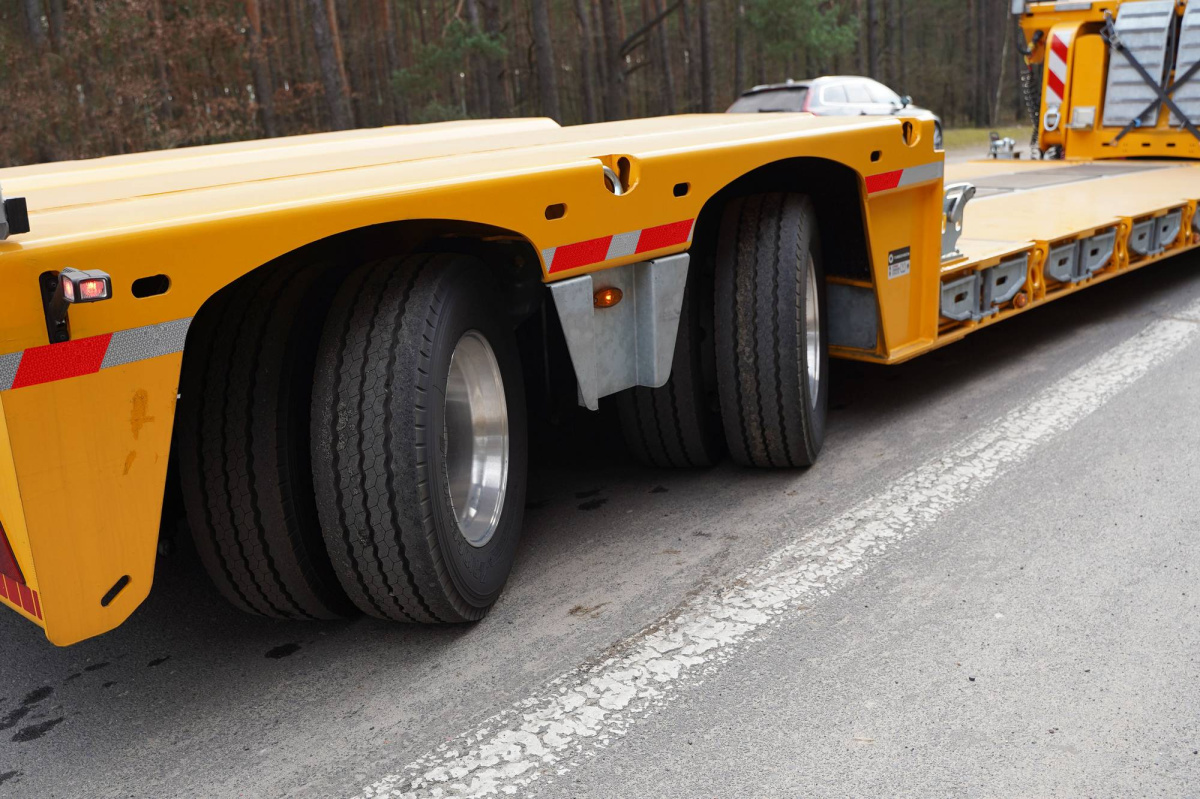

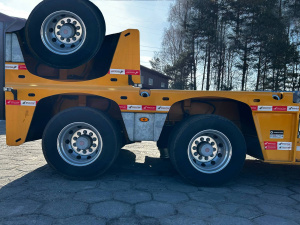

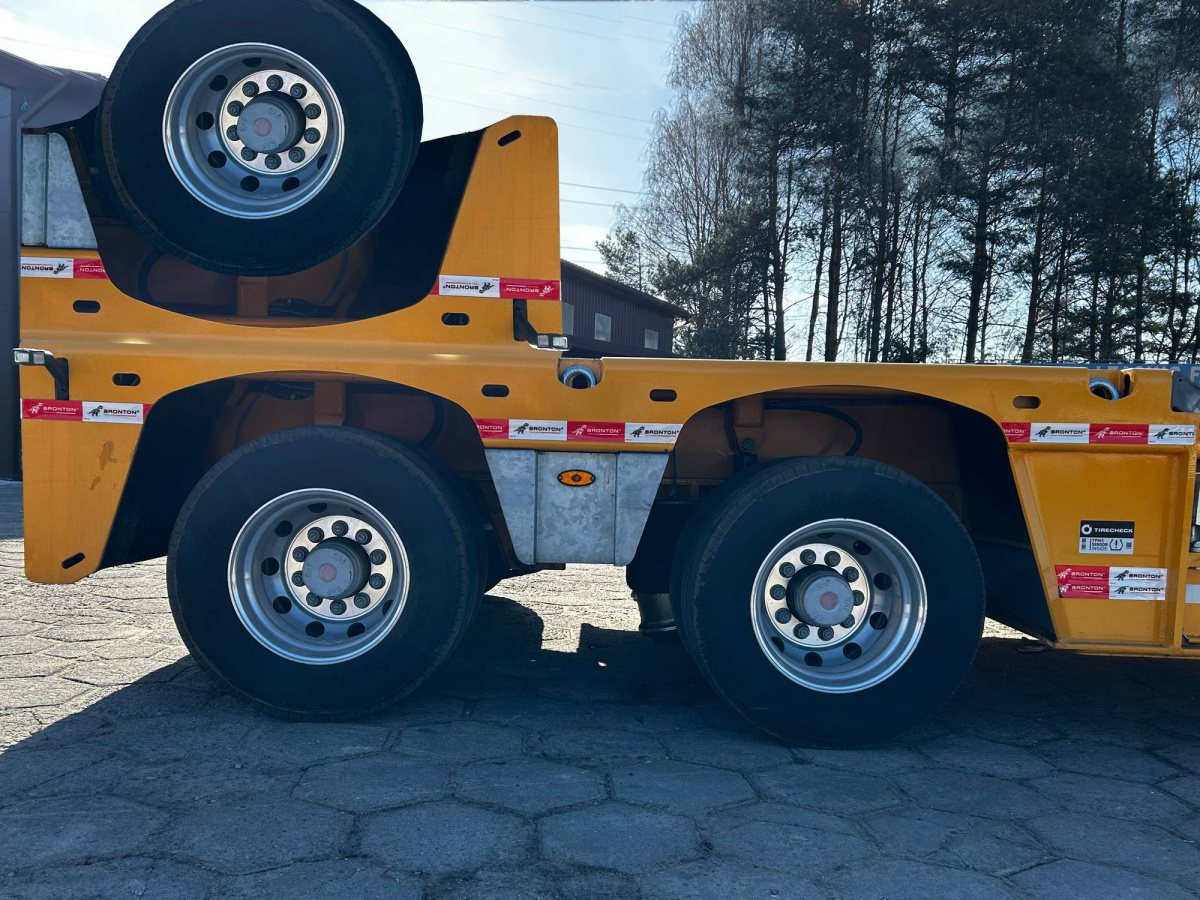

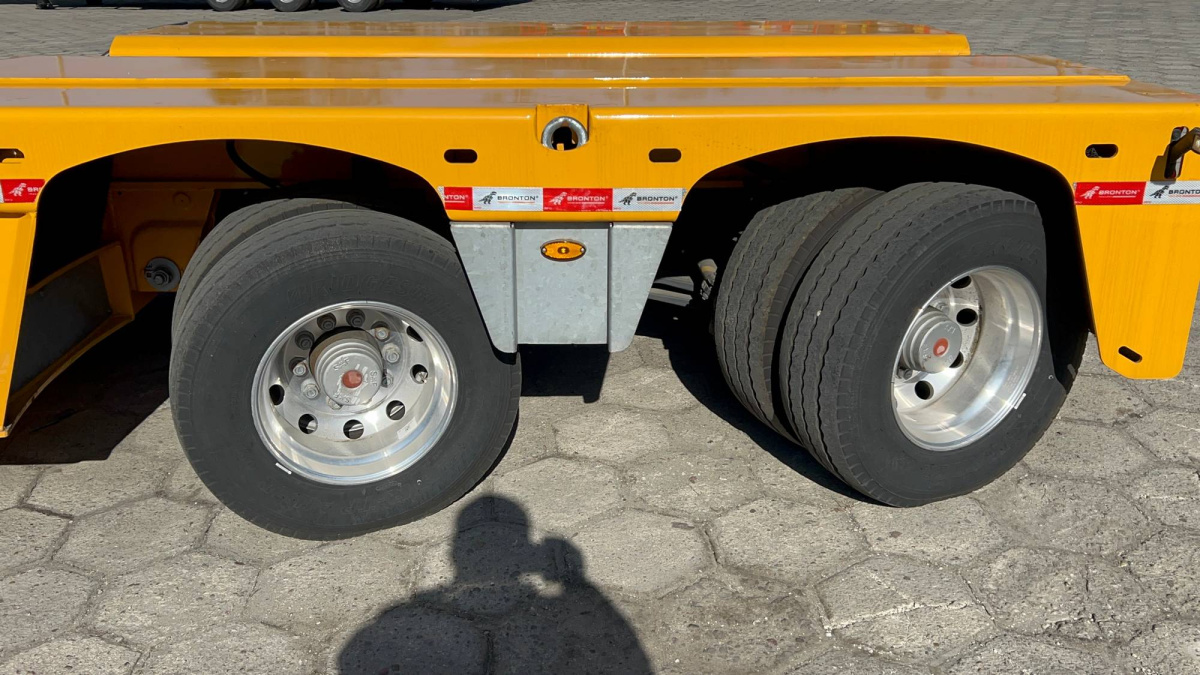

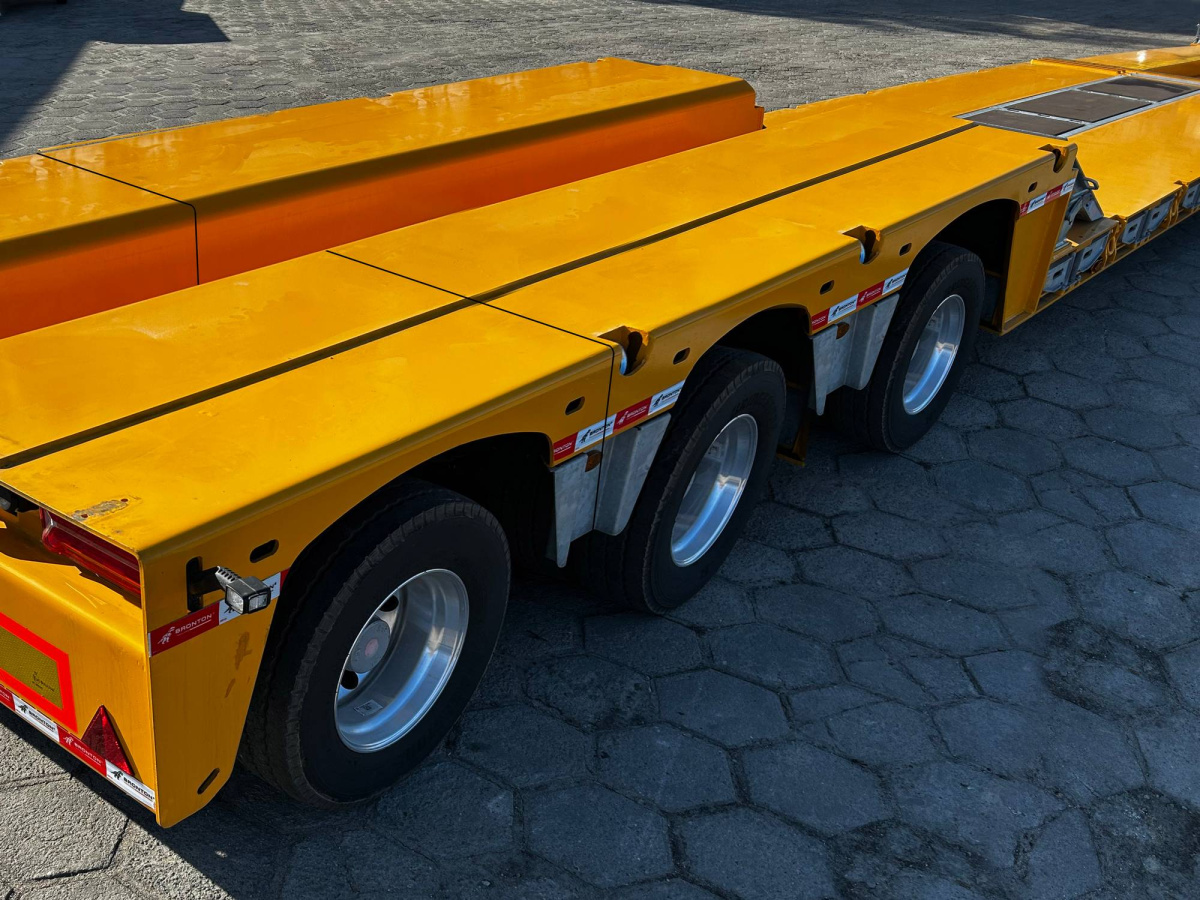

Axle Configuration

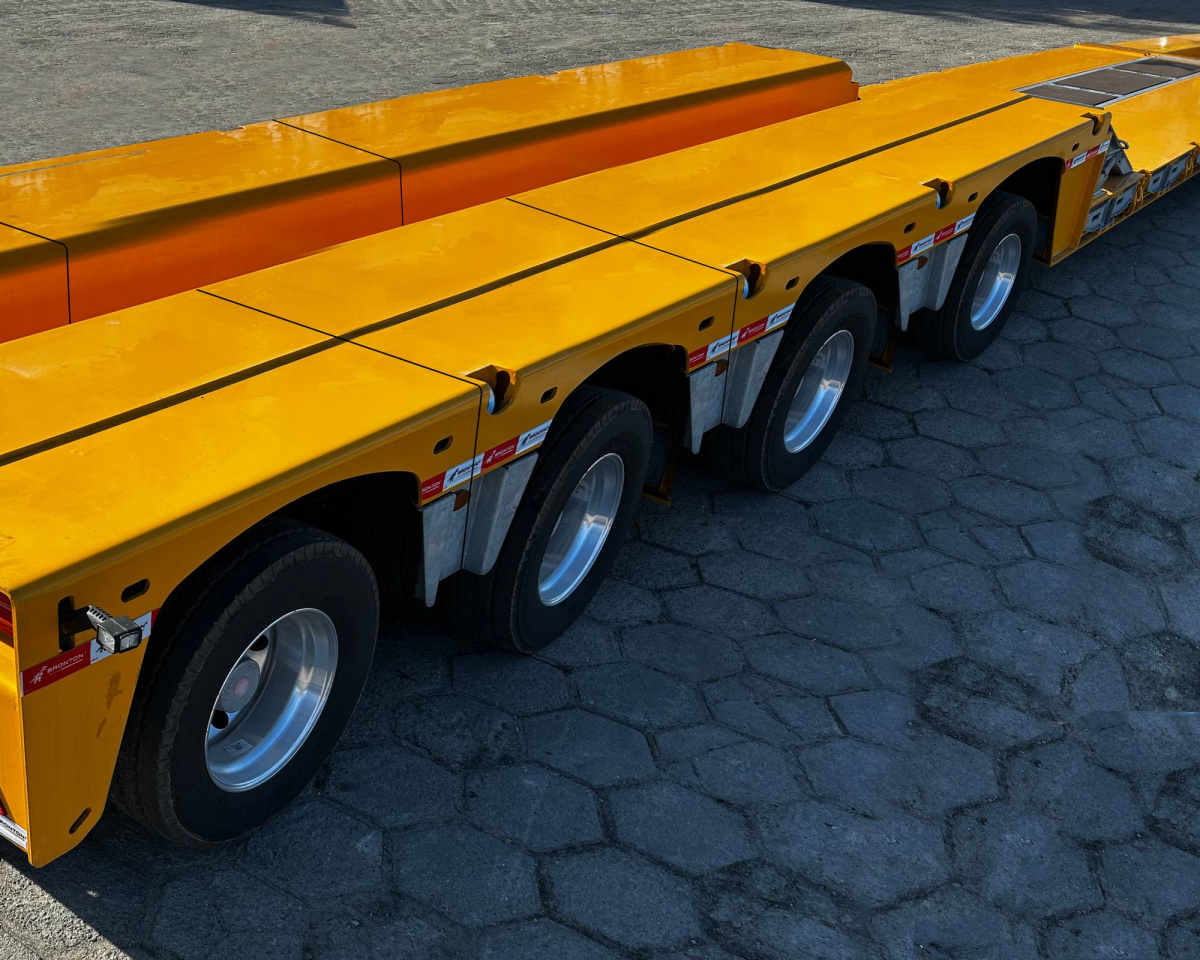

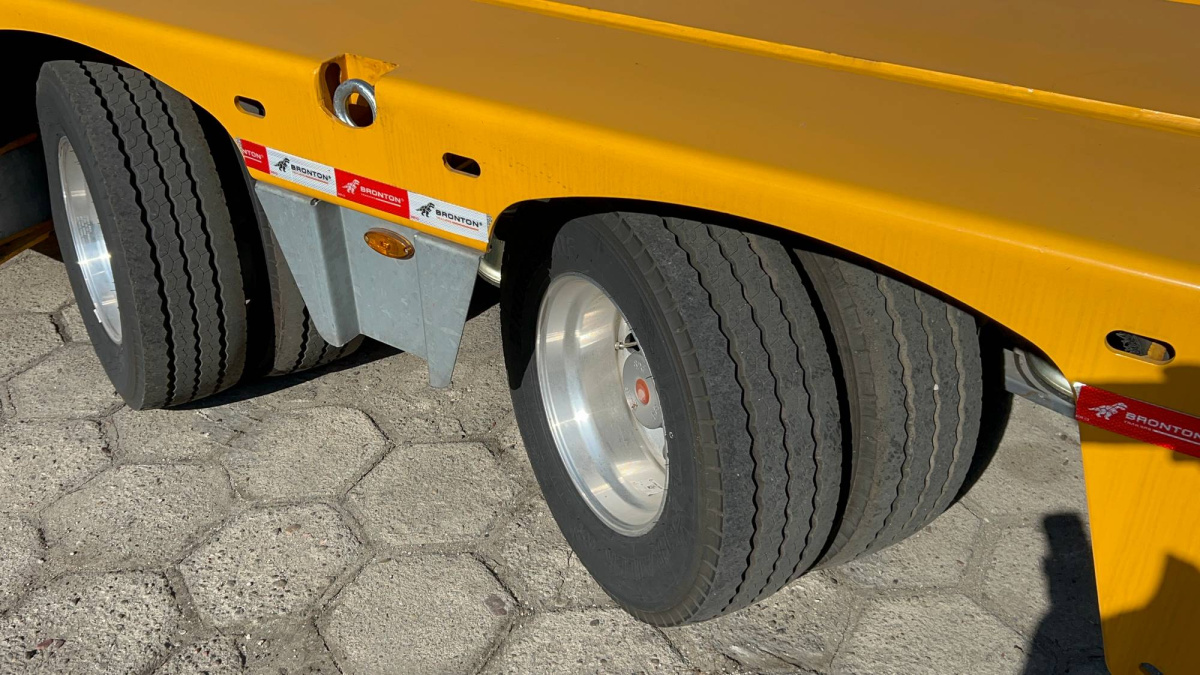

- Rear bogie equipped with multi-axle system (3 axles visible)
- Axle spacing: approx. 1,525 mm (60 in) between axles

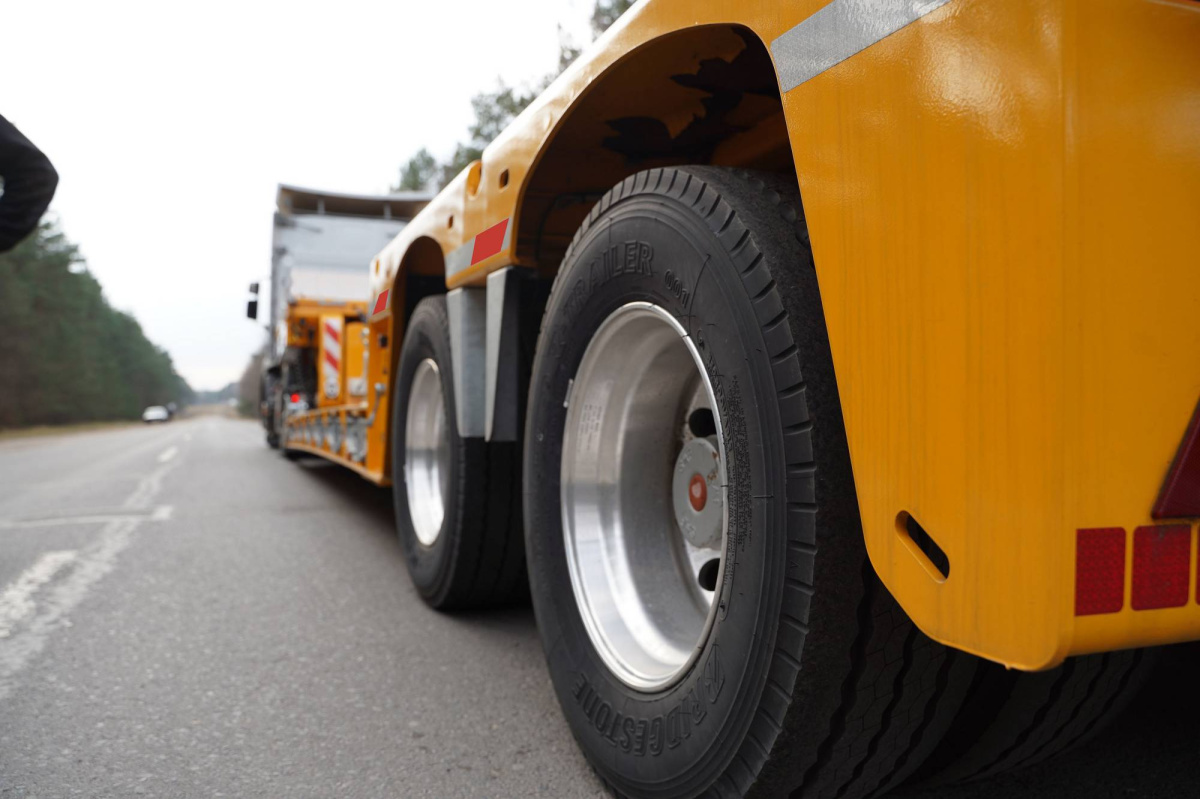

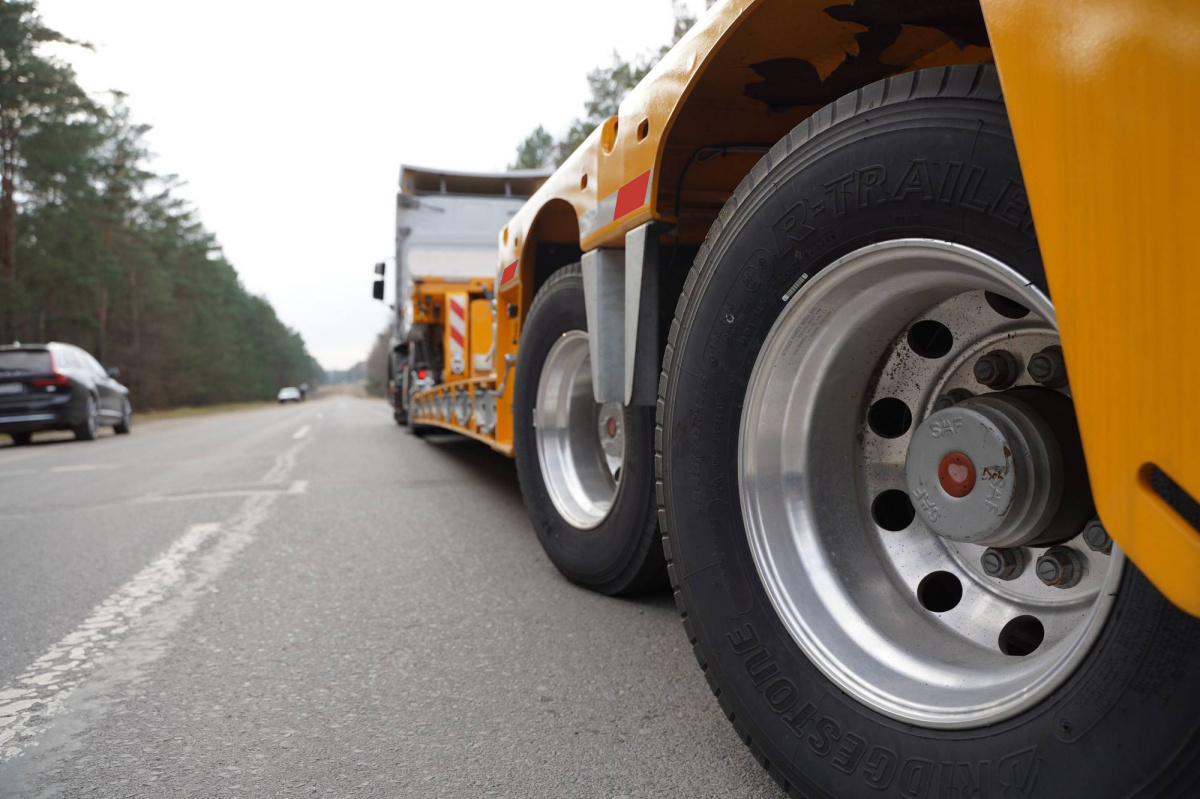

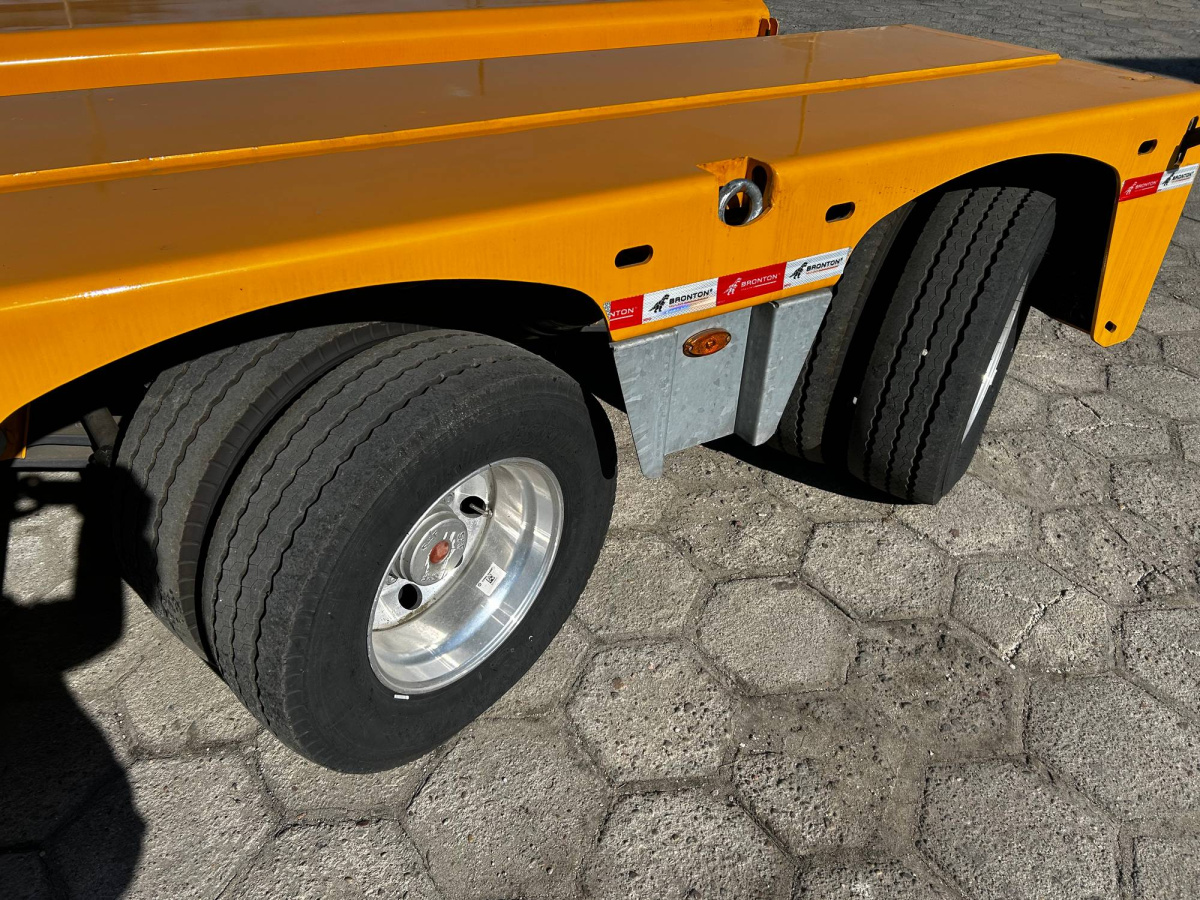

- Wheel diameter: approx. Ø800 mm (31.5 in)
